Noise

Classes for adding noise into point cloud

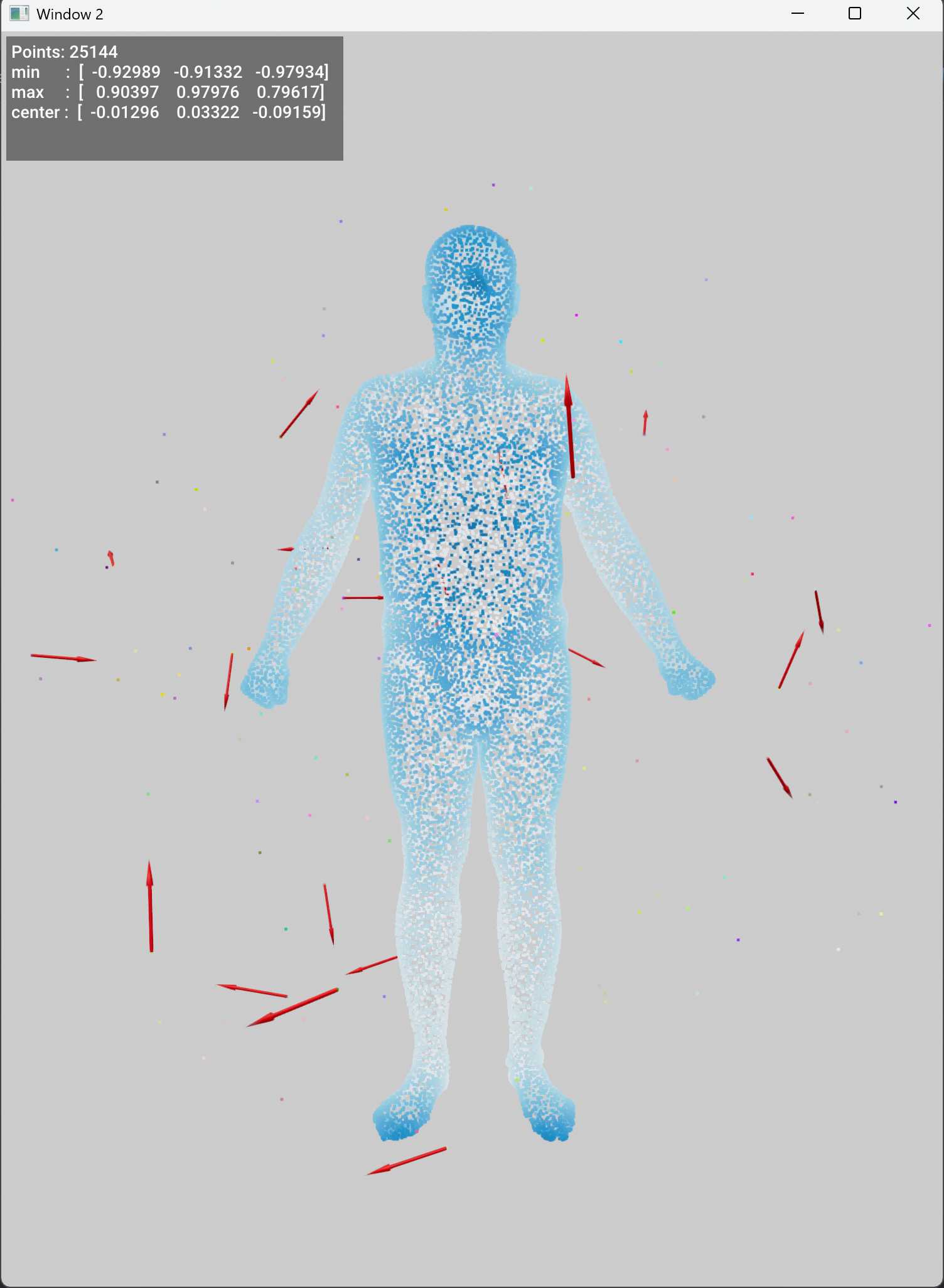

AddOutlier

Add synthetic outlier points (and attributes) around a point cloud.

This transform expects a dictionary containing:

"coord": NumPy array of shape (N, 3) with point coordinates.
Optionally "norm": per-point normals of shape (N, 3).
Optionally "color": per-point colors of shape (N, C).
Optionally "noise_index": 1D array of length N indicating noise labels (existing noise index).

It augments the point cloud by sampling additional points in a spherical shell around the existing point cloud and appends them (and their attributes) to the existing arrays.

The N number of outliers is:

N = int(max_ratio * n_pts)

where n_pts is the original number of points. If this is 0, the transform does nothing.

Behavior of fixed:

If fixed=False:
Use all N generated outliers.
If fixed=True:
Randomly choose a subset of the outliers with size:
```
N_used ∼ Uniform{ N // 2, ..., N }
```
and only append this subset.

Outliers are sampled inside a spherical shell defined from the centroid and bounding radius:

Compute the centroid:

center = mean(coord, axis=0)
Compute the maximum radius from the centroid:

r_max = max(||coord[i] - center||)
Define a spherical shell with inner radius:

r_min = radius_min * r_max

and outer radius:

   r_max_shell = r_max

Sample directions uniformly on the sphere and radii uniformly in volume within [r_min, r_max_shell], then map back to world coordinates.

For each outlier point, a random unit normal is generated (if "norm" exists), and random colors are generated (if "color" exists).

The "noise_index" field is updated as follows:

If "noise_index" does not exist:
A new array of length N + N_used is created, filled with 0 for original points and 3 (indication of outlier type noise) for new outliers.
If "noise_index" exists:
It is extended to length N + N_used, keeping existing values and setting all new entries to 3.

Parameters:

Name	Type	Description	Default
`max_ratio`	`float`	Maximum ratio of outliers to original points. The N number of generated outliers is: `N = int(max_ratio * n_pts)` where n_pts is the original point count. Defaults to 0.2.	`0.2`
`fixed`	`bool`	Controls whether to subsample the generated outliers: False → use all generated outliers (`N`). True → randomly select a subset of size between `N // 2` and `N` (inclusive). Defaults to False.	`False`
`radius_min`	`float`	Fraction of the maximum radius used as the inner radius of the sampling shell. The shell is defined as `[radius_min * r_max, r_max]`. Defaults to 0.5.	`0.5`
`range255`	`bool`	Whether `"color"` values are in `[0, 255]`. If True, outlier colors are sampled as integers in `[0, 255]`. If False, they are sampled as floats in `[0, 1]`. Defaults to False.	`False`
`apply_p`	`float`	Probability of applying the adding outliers. Defaults to 1.0.	`1.0`

Source code in src\augmentation_class.py

@TRANSFORMS.register()
class AddOutlier:
    """Add synthetic outlier points (and attributes) around a point cloud.

    This transform expects a dictionary containing:

    * `"coord"`: NumPy array of shape (N, 3) with point coordinates.
    * Optionally `"norm"`: per-point normals of shape (N, 3).
    * Optionally `"color"`: per-point colors of shape (N, C).
    * Optionally `"noise_index"`: 1D array of length N indicating noise labels (existing noise index).

    It augments the point cloud by sampling additional points in a spherical shell around the existing point cloud
    and appends them (and their attributes) to the existing arrays.

    The N number of outliers is:

        N = int(max_ratio * n_pts)

    where ``n_pts`` is the original number of points. If this is 0, the transform
    does nothing.

    Behavior of ``fixed``:

    * If ``fixed=False``:
      - Use **all** `N` generated outliers.
    * If ``fixed=True``:
      - Randomly choose a subset of the outliers with size:

            N_used ∼ Uniform{ N // 2, ..., N }

        and only append this subset.

    Outliers are sampled inside a spherical shell defined from the centroid
    and bounding radius:

    1. Compute the centroid:

           center = mean(coord, axis=0)

    2. Compute the maximum radius from the centroid:

           r_max = max(||coord[i] - center||)

    3. Define a spherical shell with inner radius:

           r_min = radius_min * r_max

       and outer radius:

           r_max_shell = r_max

    4. Sample directions uniformly on the sphere and radii uniformly in **volume** within `[r_min, r_max_shell]`,
       then map back to world coordinates.

    For each outlier point, a random unit normal is generated (if `"norm"` exists), and random colors are generated
    (if `"color"` exists).

    The `"noise_index"` field is updated as follows:

    * If `"noise_index"` does not exist:
      - A new array of length `N + N_used` is created, filled with 0 for original points and 3
      (indication of outlier type noise) for new outliers.
    * If `"noise_index"` exists:
      - It is extended to length `N + N_used`, keeping existing values and setting all new entries to 3.

    Args:
        max_ratio (float, optional):
            Maximum ratio of outliers to original points. The N number of generated outliers is:

                N = int(max_ratio * n_pts)

            where n_pts is the original point count.
            Defaults to 0.2.
        fixed (bool, optional):
            Controls whether to subsample the generated outliers:

            * False → use all generated outliers (`N`).
            * True → randomly select a subset of size between `N // 2` and `N` (inclusive).
            Defaults to False.
        radius_min (float, optional):
            Fraction of the maximum radius used as the inner radius of the sampling shell. The shell is defined as
            `[radius_min * r_max, r_max]`.
            Defaults to 0.5.
        range255 (bool, optional): Whether `"color"` values are in `[0, 255]`. If True, outlier colors are sampled as
            integers in `[0, 255]`. If False, they are sampled as floats in `[0, 1]`.
            Defaults to False.
        apply_p (float, optional):
            Probability of applying the adding outliers.
            Defaults to 1.0.
    """
    def __init__(self, max_ratio=0.2, fixed=False, radius_min=0.5, range255=False, apply_p=1.0):
        self.max_ratio = max_ratio
        self.fixed = fixed
        self.radius_min = radius_min
        self.range255 = range255
        self.apply_p = apply_p


    def __call__(self, data_dict: dict) -> dict:
        """Add outlier points and update aligned per-point attributes.

        Args:
            data_dict (dict): Input dictionary containing `"coord"` and optionally `"norm"`, `"color"`, and `"noise_index"`.

        Returns:
            dict: The same dictionary with additional outlier points and updated attributes, if adding outliers is applied.
        """
        if random.random() > self.apply_p:
            return data_dict

        if "coord" not in data_dict.keys():
            return data_dict

        coord = data_dict["coord"]
        if "noise_index" in data_dict:
            coord = coord[np.logical_not(data_dict["noise_index"])]
        n_pts = len(coord)

        # how many outliers to add
        N = int(self.max_ratio * n_pts)
        if N <= 0:
            return data_dict

        # --- define a bounding sphere from current coords ---
        center = coord.mean(axis=0, keepdims=True)  # (1,3)
        rel = coord - center  # (N,3)
        r_max = np.linalg.norm(rel, axis=1).max() + 1e-6  # avoid zero

        r_min = self.radius_min * r_max
        r_max_shell = r_max  # you can change to > r_max if you want truly outside
        # --- sample directions uniformly on sphere ---
        noise_dir = np.random.normal(size=(N, 3))  # Gaussian
        noise_dir /= np.linalg.norm(noise_dir, axis=-1, keepdims=True)  # normalize
        # --- sample radii uniformly in the volume shell [r_min, r_max_shell] ---
        u = np.random.uniform(low=0.0, high=1.0, size=N)
        # uniform in [r_min^3, r_max^3], then cube root → uniform in volume
        r = (r_min ** 3 + u * (r_max_shell ** 3 - r_min ** 3)) ** (1.0 / 3.0)
        noise = noise_dir * r[:, None]  # (N,3) in bounding shell
        noise_coord = center + noise  # map back to world coords

        # add normal
        rand_dir = np.random.normal(size=noise_coord.shape)  # gaussian noise
        # normalize to unit vectors
        norm_len = np.linalg.norm(rand_dir, axis=-1, keepdims=True) + 1e-8
        noise_normal = (rand_dir / norm_len).astype(np.float32)
        # noise_normal = noise_dir              # or use direction as "normal"


        if not self.fixed and N > 1:
            # choose subset size between N // 2 and N (inclusive)
            k_min = max(1, N // 2)
            k = np.random.randint(k_min, N + 1)
            idx_sel = np.random.choice(N, size=k, replace=False)
            noise_coord = noise_coord[idx_sel]
            noise_normal = noise_normal[idx_sel]
            N = k

        # ----- add coords -----
        data_dict["coord"] = np.concatenate([data_dict["coord"], noise_coord], axis=0)
        # ----- add normals (if present) -----
        if "norm" in data_dict:
            data_dict["norm"] = np.concatenate([data_dict["norm"], noise_normal], axis=0)
        # ----- add color for outliers (if present) -----
        if "color" in data_dict:
            orig_color = data_dict["color"]
            C = orig_color.shape[1]
            dtype = orig_color.dtype
            if self.range255:
                noise_color = np.random.randint(0, 256, size=(N, C)).astype(dtype)
            else:
                noise_color = np.random.rand(N, C).astype(dtype)
            data_dict["color"] = np.concatenate([data_dict["color"], noise_color], axis=0)

        # ----- update noise_index -----
        if "noise_index" not in data_dict:
            noise_index = np.zeros(len(data_dict["coord"]), dtype=int)
            noise_index[-N:] = 3  # mark new outliers as 3
            data_dict["noise_index"] = noise_index
        else:
            old_len = len(data_dict["noise_index"])
            new_len = len(data_dict["coord"])
            tmp = np.ones(new_len, dtype=int) * 3
            tmp[:old_len] = data_dict["noise_index"]
            data_dict["noise_index"] = tmp

        return data_dict

`call(data_dict)`

Add outlier points and update aligned per-point attributes.

Parameters:

Name	Type	Description	Default
`data_dict`	`dict`	Input dictionary containing `"coord"` and optionally `"norm"`, `"color"`, and `"noise_index"`.	required

Returns:

Name	Type	Description
`dict`	`dict`	The same dictionary with additional outlier points and updated attributes, if adding outliers is applied.

Source code in src\augmentation_class.py

def __call__(self, data_dict: dict) -> dict:
    """Add outlier points and update aligned per-point attributes.

    Args:
        data_dict (dict): Input dictionary containing `"coord"` and optionally `"norm"`, `"color"`, and `"noise_index"`.

    Returns:
        dict: The same dictionary with additional outlier points and updated attributes, if adding outliers is applied.
    """
    if random.random() > self.apply_p:
        return data_dict

    if "coord" not in data_dict.keys():
        return data_dict

    coord = data_dict["coord"]
    if "noise_index" in data_dict:
        coord = coord[np.logical_not(data_dict["noise_index"])]
    n_pts = len(coord)

    # how many outliers to add
    N = int(self.max_ratio * n_pts)
    if N <= 0:
        return data_dict

    # --- define a bounding sphere from current coords ---
    center = coord.mean(axis=0, keepdims=True)  # (1,3)
    rel = coord - center  # (N,3)
    r_max = np.linalg.norm(rel, axis=1).max() + 1e-6  # avoid zero

    r_min = self.radius_min * r_max
    r_max_shell = r_max  # you can change to > r_max if you want truly outside
    # --- sample directions uniformly on sphere ---
    noise_dir = np.random.normal(size=(N, 3))  # Gaussian
    noise_dir /= np.linalg.norm(noise_dir, axis=-1, keepdims=True)  # normalize
    # --- sample radii uniformly in the volume shell [r_min, r_max_shell] ---
    u = np.random.uniform(low=0.0, high=1.0, size=N)
    # uniform in [r_min^3, r_max^3], then cube root → uniform in volume
    r = (r_min ** 3 + u * (r_max_shell ** 3 - r_min ** 3)) ** (1.0 / 3.0)
    noise = noise_dir * r[:, None]  # (N,3) in bounding shell
    noise_coord = center + noise  # map back to world coords

    # add normal
    rand_dir = np.random.normal(size=noise_coord.shape)  # gaussian noise
    # normalize to unit vectors
    norm_len = np.linalg.norm(rand_dir, axis=-1, keepdims=True) + 1e-8
    noise_normal = (rand_dir / norm_len).astype(np.float32)
    # noise_normal = noise_dir              # or use direction as "normal"


    if not self.fixed and N > 1:
        # choose subset size between N // 2 and N (inclusive)
        k_min = max(1, N // 2)
        k = np.random.randint(k_min, N + 1)
        idx_sel = np.random.choice(N, size=k, replace=False)
        noise_coord = noise_coord[idx_sel]
        noise_normal = noise_normal[idx_sel]
        N = k

    # ----- add coords -----
    data_dict["coord"] = np.concatenate([data_dict["coord"], noise_coord], axis=0)
    # ----- add normals (if present) -----
    if "norm" in data_dict:
        data_dict["norm"] = np.concatenate([data_dict["norm"], noise_normal], axis=0)
    # ----- add color for outliers (if present) -----
    if "color" in data_dict:
        orig_color = data_dict["color"]
        C = orig_color.shape[1]
        dtype = orig_color.dtype
        if self.range255:
            noise_color = np.random.randint(0, 256, size=(N, C)).astype(dtype)
        else:
            noise_color = np.random.rand(N, C).astype(dtype)
        data_dict["color"] = np.concatenate([data_dict["color"], noise_color], axis=0)

    # ----- update noise_index -----
    if "noise_index" not in data_dict:
        noise_index = np.zeros(len(data_dict["coord"]), dtype=int)
        noise_index[-N:] = 3  # mark new outliers as 3
        data_dict["noise_index"] = noise_index
    else:
        old_len = len(data_dict["noise_index"])
        new_len = len(data_dict["coord"])
        tmp = np.ones(new_len, dtype=int) * 3
        tmp[:old_len] = data_dict["noise_index"]
        data_dict["noise_index"] = tmp

    return data_dict

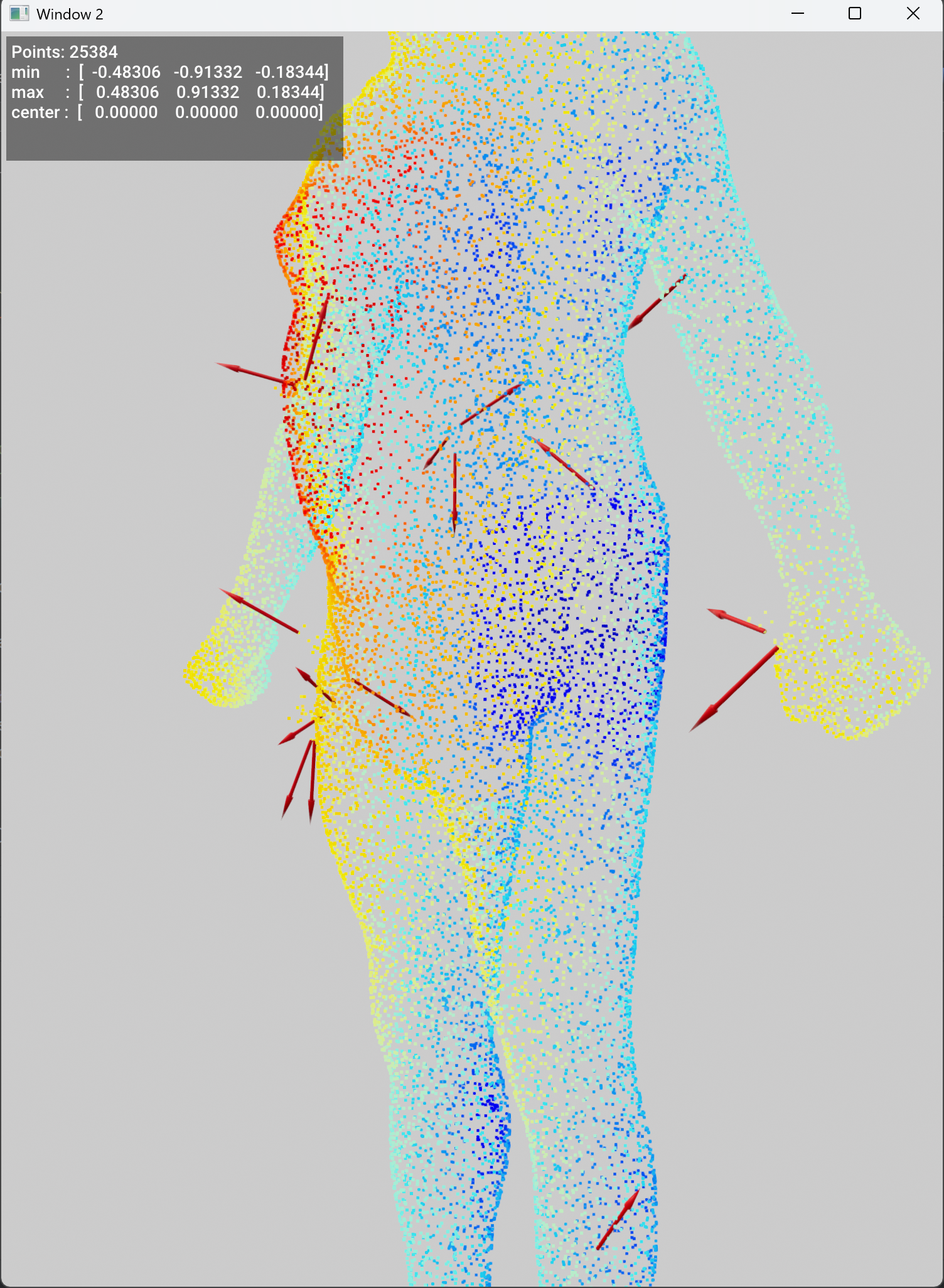

Adding Outlier Noise

Before After

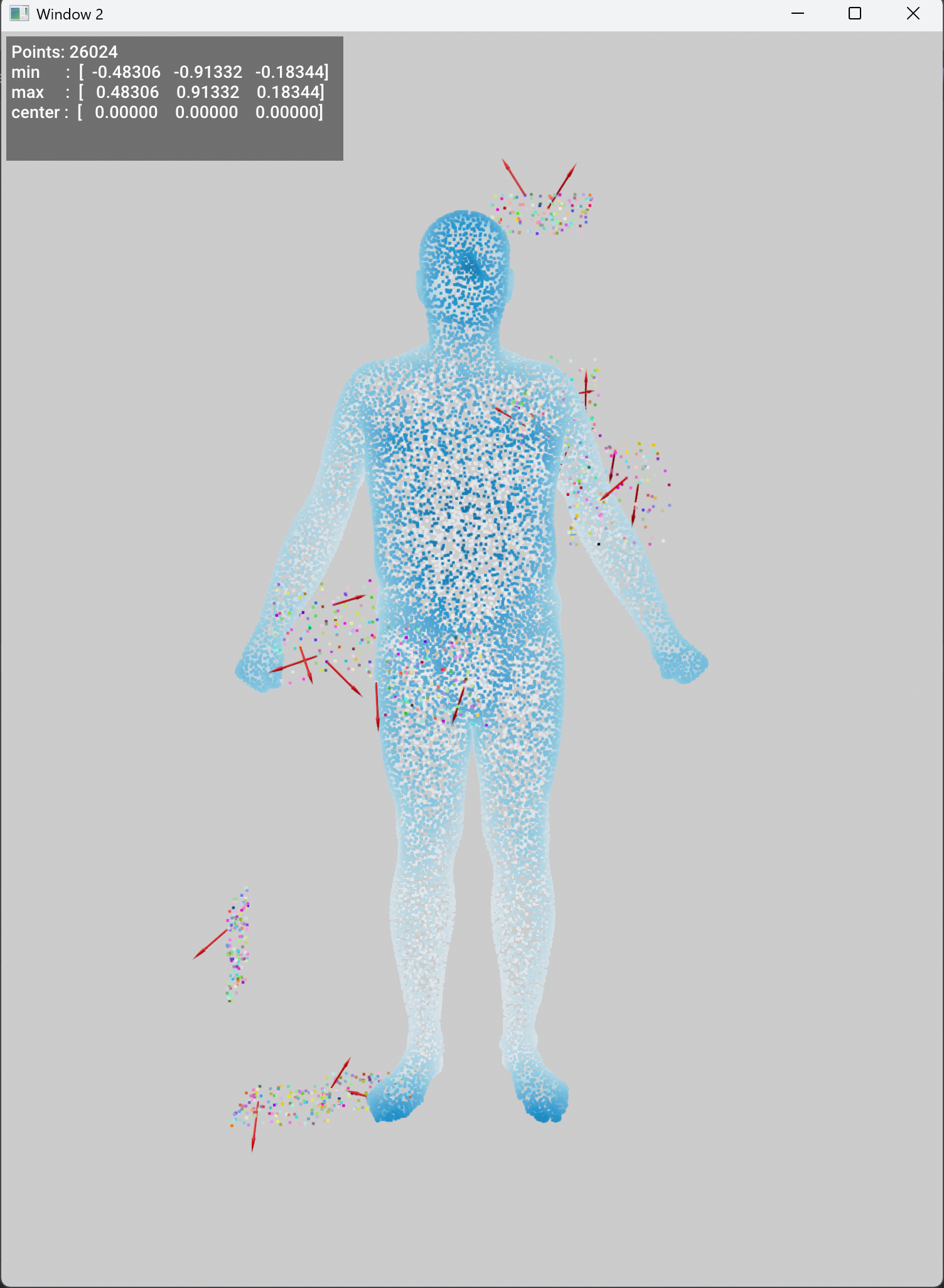

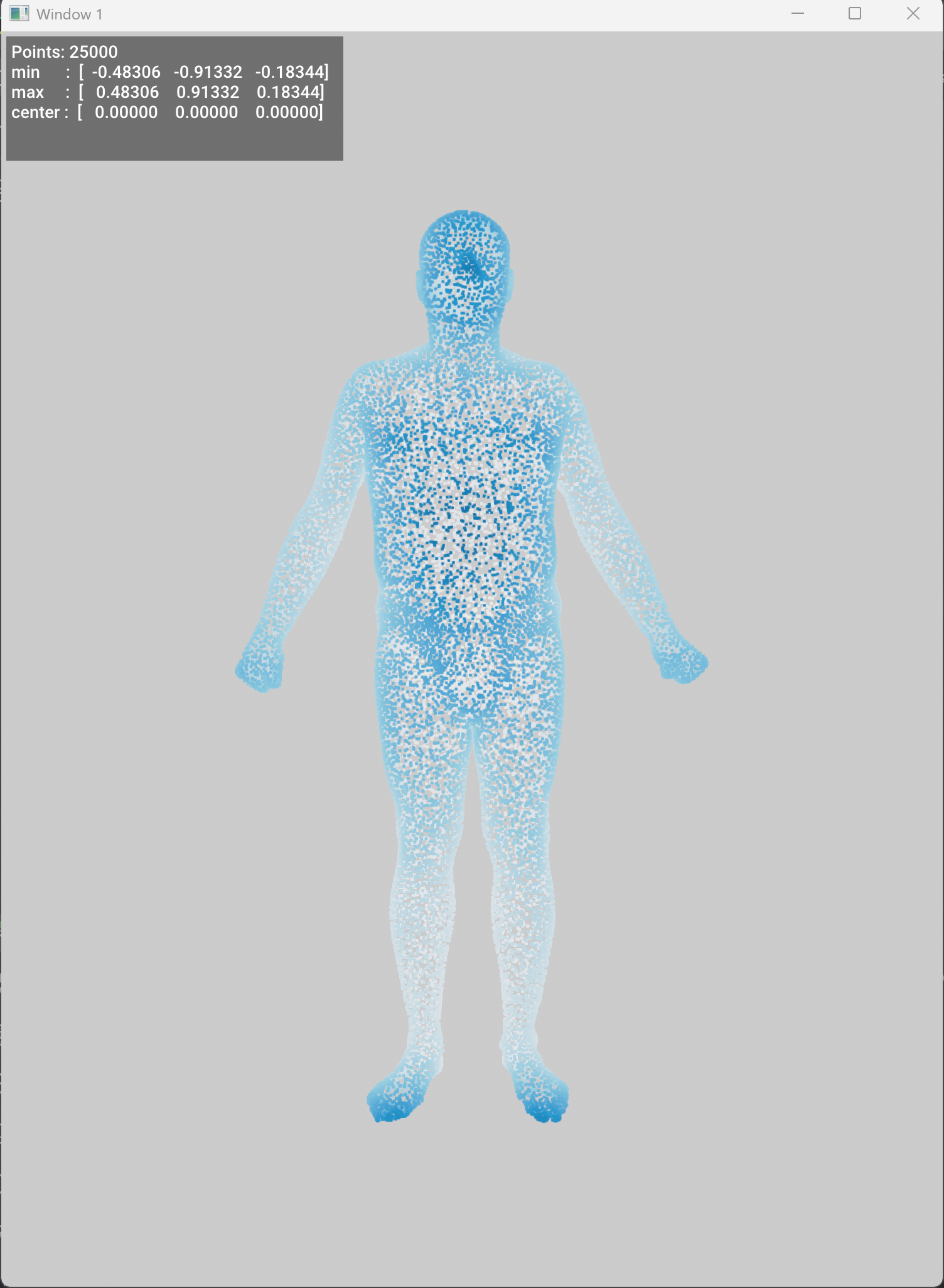

AddBackgroundNoise

Add structured background noise patches around a point cloud.

This transform expects a dictionary containing:

"coord": NumPy array of shape (N, 3) with point coordinates.
Optionally "norm": per-point normals of shape (N, 3).
Optionally "color": per-point colors of shape (N, C).
Optionally "noise_index": 1D array of length N indicating noise labels (existing noise index).

It generates several small 3D regions (up to max_regions), each containing up to region_max_k random points. These regions are anchored to the bounding box of the (non-noise) point cloud and then added as background clutter:

1. Compute the axis-aligned bounding box (AABB) from points with ``noise_index == 0`` (or all points if ``noise_index`` is absent).
2. Sample up to ``max_regions`` random centers inside the box (with behavior controlled by ``mode``).
3. For each region, sample points uniformly in a cube of side length ``region_size`` around the center.
4. Snap one coordinate of each region to one face of the bounding box, so that noise patches lie on or around the box surface.
5. Generate random unit normals for these noise points.
6. Optionally subsample a random subset of regions/points when ``fixed=False``.
7. Concatenate noise coordinates, normals, and colors (if present) to the existing arrays, and update ``noise_index`` to mark them asbackground noise (label 2).

Parameters:

Name	Type	Description	Default
`max_regions`	`int`	Maximum number of noise regions to generate. Each region is a local cube of sampled noise points. Defaults to 8.	`8`
`region_max_k`	`int`	Maximum number of points per region before optional subsampling. Total initial noise points are roughly `max_regions * region_max_k` before any reduction. Defaults to 128.	`128`
`region_size`	`float`	Side length of each cubic noise region. Points are sampled uniformly in a cube of side `region_size` centered at each region center. Defaults to 0.5.	`0.5`
`fixed`	`bool`	Controls randomness and subsampling of the generated noise: * If `False`: - Randomly choose a number of regions between 1 and `max_regions`. - Flatten all noise points from those regions. - Randomly select a subset of points, with size between roughly 1/8 of all region points and the full set. * If `True`: - Use all `max_regions * region_max_k` points (no region or point subsampling). Defaults to False.	`False`
`range255`	`bool`	Whether color values are in the range `[0, 255]`. If True, noise colors are sampled as integers in `[0, 255]`. If False, noise colors are sampled as floats in `[0, 1]`. Defaults to False.	`False`
`mode`	`{outside, inside}`	Controls how the region centers are chosen relative to the bounding box: `"inside"`: Region centers are chosen so that the entire noise cube (of side `region_size`) lies strictly inside the bounding box, as much as possible. This ensures all noise points stay on/within the box volume. `"outside"`: Region centers are sampled anywhere inside the bounding box, and one coordinate of each region is snapped to a box face. Some noise points may lie slightly outside the box, mimicking more realistic background clutter. Defaults to `"outside"`.	`'outside'`
`apply_p`	`float`	Probability of applying the background Defaults to 1.0.	`1.0`

Source code in src\augmentation_class.py

@TRANSFORMS.register()
class AddBackgroundNoise:
    """Add structured background noise patches around a point cloud.

    This transform expects a dictionary containing:

    * `"coord"`: NumPy array of shape (N, 3) with point coordinates.
    * Optionally `"norm"`: per-point normals of shape (N, 3).
    * Optionally `"color"`: per-point colors of shape (N, C).
    * Optionally `"noise_index"`: 1D array of length N indicating noise labels (existing noise index).

    It generates several small 3D regions (up to ``max_regions``), each containing up to ``region_max_k`` random points.
    These regions are anchored to the bounding box of the (non-noise) point cloud and then added as background clutter:

        1. Compute the axis-aligned bounding box (AABB) from points with ``noise_index == 0`` (or all points if ``noise_index`` is absent).
        2. Sample up to ``max_regions`` random centers inside the box (with behavior controlled by ``mode``).
        3. For each region, sample points uniformly in a cube of side length ``region_size`` around the center.
        4. Snap one coordinate of each region to one face of the bounding box, so that noise patches lie on or around the box surface.
        5. Generate random unit normals for these noise points.
        6. Optionally subsample a random subset of regions/points when ``fixed=False``.
        7. Concatenate noise coordinates, normals, and colors (if present) to the existing arrays, and update ``noise_index`` to mark them asbackground noise (label 2).

    Args:
        max_regions (int, optional):
            Maximum number of noise regions to generate. Each region is a local cube of sampled noise points.
            Defaults to 8.
        region_max_k (int, optional):
            Maximum number of points per region before optional subsampling. Total initial noise points are
            roughly ``max_regions * region_max_k`` before any reduction.
            Defaults to 128.
        region_size (float, optional):
            Side length of each cubic noise region. Points are sampled uniformly in a cube of side ``region_size``
            centered at each region center.
            Defaults to 0.5.
        fixed (bool, optional):
            Controls randomness and subsampling of the generated noise:
            * If ``False``:
              - Randomly choose a number of regions between 1 and ``max_regions``.
              - Flatten all noise points from those regions.
              - Randomly select a subset of points, with size between roughly 1/8 of all region points and the full set.
            * If ``True``:
              - Use all ``max_regions * region_max_k`` points (no region or point subsampling).

            Defaults to False.
        range255 (bool, optional):
            Whether color values are in the range ``[0, 255]``. If True, noise colors are sampled as integers in
            ``[0, 255]``. If False, noise colors are sampled as floats in ``[0, 1]``.
            Defaults to False.
        mode ({"outside", "inside"}, optional): Controls how the region
            centers are chosen relative to the bounding box:

            * ``"inside"``:
              - Region centers are chosen so that the entire noise cube (of side ``region_size``) lies strictly inside the bounding
                box, as much as possible. This ensures all noise points stay on/within the box volume.
            * ``"outside"``:
              - Region centers are sampled anywhere inside the bounding box, and one coordinate of each region is snapped to a box face.
                Some noise points may lie slightly outside the box, mimicking more realistic background clutter.

            Defaults to ``"outside"``.
        apply_p (float, optional):
            Probability of applying the background
            Defaults to 1.0.
    """
    def __init__(self, max_regions: int =8, region_max_k: int =128, region_size: float=0.5, fixed:bool=False, range255: bool=False, mode: str="outside", apply_p: float=1.0):
        self.max_regions = max_regions
        self.region_max_k = region_max_k
        self.fixed = fixed
        self.region_size = region_size
        self.range255 = range255
        self.apply_p = apply_p
        assert mode in ["outside", "inside"]
        # "inside" is to make sure all noise are on the bounding box, "outside" only guarantee the center is on the
        # bounding box, some noise might be outside the box, "inside" is for nice for segmentation / denoising. But
        # "outside" is more like real background clutter.
        self.mode = mode

    def __call__(self, data_dict: dict) -> dict:
        """Add background noise regions and update aligned per-point attributes.

        Args:
            data_dict (dict): Input dictionary containing at least `"coord"`. May also contain `"norm"`, `"color"`, and `"noise_index"`.
                Any existing `"noise_index" > 0` points are excluded when computing the bounding box used to place new regions.

        Returns:
            dict: The same dictionary with added background noise points (coords, normals, colors if present) and an updated
            `"noise_index"` marking these new points with label 2.
        """
        if random.random() > self.apply_p:
            return data_dict

        if "coord" not in data_dict.keys():
            return data_dict

        coord = data_dict["coord"]
        if "noise_index" in data_dict:
            coord = coord[np.logical_not(data_dict["noise_index"])]
        max_value, min_value = np.max(coord, axis=0), np.min(coord, axis=0)
        bounding_box = np.stack((min_value, max_value), axis=1)

        half = self.region_size / 2.0
        if self.mode == "inside":
            span = max_value - min_value
            inner_min = min_value + np.minimum(half, np.maximum(span / 2.0 - 1e-6, 0.0))
            inner_max = max_value - np.minimum(half, np.maximum(span / 2.0 - 1e-6, 0.0))
        else:
            inner_min = min_value
            inner_max = max_value

        random_x = np.random.uniform(inner_min[0], inner_max[0], self.max_regions)  # [max_regions]
        random_y = np.random.uniform(inner_min[1], inner_max[1], self.max_regions)  # [max_regions]
        random_z = np.random.uniform(inner_min[2], inner_max[2], self.max_regions)  # [max_regions]
        random_point_center = np.stack((random_x, random_y, random_z), axis=1)  # [max_regions, 3]

        # [max_regions, region_max_k, 3]
        noise = np.random.uniform(low=-half, high=half, size=(len(random_point_center), self.region_max_k, 3))
        random_point = random_point_center[:, np.newaxis, :] + noise  # [max_regions, 1, 3] + [max_regions, region_max_k, 3]
        # random_point_normal = np.zeros_like(random_point)  # [max_regions, region_max_k, 3]
        # tmp_normal = np.stack((np.eye(3), np.eye(3) * -1), axis=1)  # [3, 2, 3]

        random_face = np.random.choice(6, self.max_regions, replace=True)
        for i, val in enumerate(random_face):
            divide = val // 2
            mod = val % 2
            random_point[i, :, divide] = bounding_box[divide][mod]
            # random_point_normal[i, :] = tmp_normal[divide][mod]

        # ----- RANDOM NORMALS INSTEAD OF FACE NORMALS -----
        # shape (R, K, 3)
        rand_dir = np.random.normal(size=random_point.shape)  # gaussian noise
        # normalize to unit vectors
        norm_len = np.linalg.norm(rand_dir, axis=-1, keepdims=True) + 1e-8
        random_point_normal = (rand_dir / norm_len).astype(np.float32)

        if not self.fixed:
            region_size = np.random.randint(1, self.max_regions + 1)
            random_point = random_point[:region_size].reshape(-1, 3)
            random_point_normal = random_point_normal[:region_size].reshape(-1, 3)
            total_size = np.random.randint(max(1, len(random_point) // 8), len(random_point) + 1)

            shuffle_idx = np.arange(len(random_point))
            np.random.shuffle(shuffle_idx)
            shuffle_idx = shuffle_idx[:total_size]
            random_point = random_point[shuffle_idx]
            random_point_normal = random_point_normal[shuffle_idx]
        else:
            random_point = random_point.reshape(-1, 3)
            random_point_normal = random_point_normal.reshape(-1, 3)

        # ----- ADD COLOR FOR NOISE -----
        if "color" in data_dict:
            orig_color = data_dict["color"]
            C = orig_color.shape[1]
            dtype = orig_color.dtype
            if self.range255:
                noise_color = np.random.randint(0, 256, size=(random_point.shape[0], C)).astype(dtype)
            else:
                noise_color = np.random.rand(random_point.shape[0], C).astype(dtype)

        # ----- CONCATENATE -----
        data_dict["coord"] = np.concatenate((data_dict["coord"], random_point), axis=0)
        if "norm" in data_dict:
            data_dict["norm"] = np.concatenate((data_dict["norm"], random_point_normal), axis=0)

        if "color" in data_dict:
            data_dict["color"] = np.concatenate((data_dict["color"], noise_color), axis=0)

        # ----- UPDATE noise_index -----
        num_new = random_point.shape[0]
        if "noise_index" not in data_dict:
            noise_index = np.zeros(len(data_dict["coord"]), dtype=int)
            noise_index[-num_new:] = 2  # mark new as noise
            data_dict["noise_index"] = noise_index
        else:
            old_len = len(data_dict["noise_index"])
            new_len = len(data_dict["coord"])
            tmp = np.ones(new_len, dtype=int) * 2
            tmp[:old_len] = data_dict["noise_index"]
            data_dict["noise_index"] = tmp

        return data_dict

`call(data_dict)`

Add background noise regions and update aligned per-point attributes.

Parameters:

Name	Type	Description	Default
`data_dict`	`dict`	Input dictionary containing at least `"coord"`. May also contain `"norm"`, `"color"`, and `"noise_index"`. Any existing `"noise_index" > 0` points are excluded when computing the bounding box used to place new regions.	required

Returns:

Name	Type	Description
`dict`	`dict`	The same dictionary with added background noise points (coords, normals, colors if present) and an updated
	`dict`	`"noise_index"` marking these new points with label 2.

Source code in src\augmentation_class.py

def __call__(self, data_dict: dict) -> dict:
    """Add background noise regions and update aligned per-point attributes.

    Args:
        data_dict (dict): Input dictionary containing at least `"coord"`. May also contain `"norm"`, `"color"`, and `"noise_index"`.
            Any existing `"noise_index" > 0` points are excluded when computing the bounding box used to place new regions.

    Returns:
        dict: The same dictionary with added background noise points (coords, normals, colors if present) and an updated
        `"noise_index"` marking these new points with label 2.
    """
    if random.random() > self.apply_p:
        return data_dict

    if "coord" not in data_dict.keys():
        return data_dict

    coord = data_dict["coord"]
    if "noise_index" in data_dict:
        coord = coord[np.logical_not(data_dict["noise_index"])]
    max_value, min_value = np.max(coord, axis=0), np.min(coord, axis=0)
    bounding_box = np.stack((min_value, max_value), axis=1)

    half = self.region_size / 2.0
    if self.mode == "inside":
        span = max_value - min_value
        inner_min = min_value + np.minimum(half, np.maximum(span / 2.0 - 1e-6, 0.0))
        inner_max = max_value - np.minimum(half, np.maximum(span / 2.0 - 1e-6, 0.0))
    else:
        inner_min = min_value
        inner_max = max_value

    random_x = np.random.uniform(inner_min[0], inner_max[0], self.max_regions)  # [max_regions]
    random_y = np.random.uniform(inner_min[1], inner_max[1], self.max_regions)  # [max_regions]
    random_z = np.random.uniform(inner_min[2], inner_max[2], self.max_regions)  # [max_regions]
    random_point_center = np.stack((random_x, random_y, random_z), axis=1)  # [max_regions, 3]

    # [max_regions, region_max_k, 3]
    noise = np.random.uniform(low=-half, high=half, size=(len(random_point_center), self.region_max_k, 3))
    random_point = random_point_center[:, np.newaxis, :] + noise  # [max_regions, 1, 3] + [max_regions, region_max_k, 3]
    # random_point_normal = np.zeros_like(random_point)  # [max_regions, region_max_k, 3]
    # tmp_normal = np.stack((np.eye(3), np.eye(3) * -1), axis=1)  # [3, 2, 3]

    random_face = np.random.choice(6, self.max_regions, replace=True)
    for i, val in enumerate(random_face):
        divide = val // 2
        mod = val % 2
        random_point[i, :, divide] = bounding_box[divide][mod]
        # random_point_normal[i, :] = tmp_normal[divide][mod]

    # ----- RANDOM NORMALS INSTEAD OF FACE NORMALS -----
    # shape (R, K, 3)
    rand_dir = np.random.normal(size=random_point.shape)  # gaussian noise
    # normalize to unit vectors
    norm_len = np.linalg.norm(rand_dir, axis=-1, keepdims=True) + 1e-8
    random_point_normal = (rand_dir / norm_len).astype(np.float32)

    if not self.fixed:
        region_size = np.random.randint(1, self.max_regions + 1)
        random_point = random_point[:region_size].reshape(-1, 3)
        random_point_normal = random_point_normal[:region_size].reshape(-1, 3)
        total_size = np.random.randint(max(1, len(random_point) // 8), len(random_point) + 1)

        shuffle_idx = np.arange(len(random_point))
        np.random.shuffle(shuffle_idx)
        shuffle_idx = shuffle_idx[:total_size]
        random_point = random_point[shuffle_idx]
        random_point_normal = random_point_normal[shuffle_idx]
    else:
        random_point = random_point.reshape(-1, 3)
        random_point_normal = random_point_normal.reshape(-1, 3)

    # ----- ADD COLOR FOR NOISE -----
    if "color" in data_dict:
        orig_color = data_dict["color"]
        C = orig_color.shape[1]
        dtype = orig_color.dtype
        if self.range255:
            noise_color = np.random.randint(0, 256, size=(random_point.shape[0], C)).astype(dtype)
        else:
            noise_color = np.random.rand(random_point.shape[0], C).astype(dtype)

    # ----- CONCATENATE -----
    data_dict["coord"] = np.concatenate((data_dict["coord"], random_point), axis=0)
    if "norm" in data_dict:
        data_dict["norm"] = np.concatenate((data_dict["norm"], random_point_normal), axis=0)

    if "color" in data_dict:
        data_dict["color"] = np.concatenate((data_dict["color"], noise_color), axis=0)

    # ----- UPDATE noise_index -----
    num_new = random_point.shape[0]
    if "noise_index" not in data_dict:
        noise_index = np.zeros(len(data_dict["coord"]), dtype=int)
        noise_index[-num_new:] = 2  # mark new as noise
        data_dict["noise_index"] = noise_index
    else:
        old_len = len(data_dict["noise_index"])
        new_len = len(data_dict["coord"])
        tmp = np.ones(new_len, dtype=int) * 2
        tmp[:old_len] = data_dict["noise_index"]
        data_dict["noise_index"] = tmp

    return data_dict

Adding Background Noise

Before After

AddNoise

Add local noise clusters around randomly chosen points.

This transform expects a dictionary containing:

"coord": NumPy array of shape (N, 3) with point coordinates.
Optionally "norm": per-point normals of shape (N, 3), required if method="custom".
Optionally "color": per-point colors of shape (N, C).
Optionally "noise_index": 1D array of length N indicating existing noise labels.

The transform works by:

Selecting a subset of points as noise centers. The number of centers is:

noise_center_count = int(N * noise_size_ratio)

(clamped to [1, N]). If this is 0, no noise is added. 2. For each center, generating up to noise_max_k noise points in its local neighborhood (cluster), according to the chosen method and boundary. 3. Optionally subsampling the generated noise when fixed=False. 4. Mapping the local offsets to world coordinates and appending them (and their normals/colors) to the existing arrays. 5. Updating noise_index to mark the new points as local noise (value 1).

Noise generation is controlled by two knobs:

method: defines how offsets are sampled:
- "uniform":
- If boundary="sphere": sample directions uniformly and radii uniformly in volume within a ball of radius ball_r.
- If boundary="cube": sample coordinates uniformly in [low, high]^3.
- "gaussian":
- If boundary="sphere": Gaussian around the center, clamped to lie within a ball of radius ball_r.
- If boundary="cube": Gaussian in a cube, then clipped to the interval [low, high] per axis.
- "custom":
- Requires a "norm" field.
- For each center, uses its normal as a base direction and applies directional + radial jitter (using ball_r as scale) to create offsets in a “tube-like” pattern around the surface.
boundary: defines the shape of the local region:
- "sphere": offsets lie in or near a ball of radius ball_r.
- "cube": offsets lie in or near a cube with side approximately high - low (for uniform/gaussian).

Colors for noise points are derived from the center colors:

For "uniform" and "gaussian" methods:
Noise points inherit exactly the color of their center.
For "custom":
Optionally add Gaussian jitter in color space (scale depends on whether range255 is True or False), then clip to valid range.

The number of final noise points is controlled by fixed:

If fixed=True:
Use all generated noise: noise_center_count * noise_max_k points.
If fixed=False:
Randomly shuffle all noise points and keep a random subset of size between approximately one-eighth and the full generated count.

Parameters:

Name	Type	Description	Default
`noise_size_ratio`	`float`	Fraction of non-noise points to use as noise centers. The number of centers is: `noise_center_count = int(N * noise_size_ratio)` Defaults to 1./64.	`1.0 / 64`
`noise_max_k`	`int`	Maximum number of noise points generated per center before optional subsampling. Defaults to 16.	`16`
`fixed`	`bool`	Whether to keep all generated noise points or randomly subsample them: True → keep all `noise_center_count * noise_max_k` noise points. False → shuffle and randomly keep a subset of those points. Defaults to True.	`True`
`method`	`{uniform, gaussian, custom}`	Noise sampling strategy. See above for details. `"custom"` requires `"norm"` in `data_dict`. Defaults to `"uniform"`.	`'uniform'`
`boundary`	`{sphere, cube}`	Shape of the local region in which noise is sampled. Interacts with `method` as described above. Defaults to `"sphere"`.	`'sphere'`
`low`	`float`	Lower bound for cube-based offsets (used for `boundary="cube"` in `"uniform"` and `"gaussian"`). Defaults to -0.1.	`-0.1`
`high`	`float`	Upper bound for cube-based offsets. Defaults to 0.1.	`0.1`
`ball_r`	`float`	Radius of the spherical neighborhood for `boundary="sphere"` methods; also used as a scale for radial jitter in the `"custom"` method. Defaults to 0.1.	`0.1`
`range255`	`bool`	Whether colors are stored in `[0, 255]` (integer-like). If True, color jitter in the `"custom"` method is done in that range. If False, colors are assumed in `[0, 1]`. Defaults to False.	`False`
`apply_p`	`float`	Probability of applying the noise Defaults to 1.0.	`1.0`

Source code in src\augmentation_class.py

@TRANSFORMS.register()
class AddNoise:
    """Add local noise clusters around randomly chosen points.

    This transform expects a dictionary containing:

    * ``"coord"``: NumPy array of shape (N, 3) with point coordinates.
    * Optionally ``"norm"``: per-point normals of shape (N, 3), required if
      ``method="custom"``.
    * Optionally ``"color"``: per-point colors of shape (N, C).
    * Optionally ``"noise_index"``: 1D array of length N indicating existing noise labels.

    The transform works by:

    1. Selecting a subset of points as **noise centers**.
       The number of centers is:

           noise_center_count = int(N * noise_size_ratio)

       (clamped to ``[1, N]``). If this is 0, no noise is added.
    2. For each center, generating up to ``noise_max_k`` noise points in its
       local neighborhood (cluster), according to the chosen ``method`` and ``boundary``.
    3. Optionally subsampling the generated noise when ``fixed=False``.
    4. Mapping the local offsets to world coordinates and appending them (and their normals/colors) to the existing arrays.
    5. Updating ``noise_index`` to mark the new points as local noise (value 1).

    Noise generation is controlled by two knobs:

    * ``method``: defines *how* offsets are sampled:
        - ``"uniform"``:
          * If ``boundary="sphere"``: sample directions uniformly and radii uniformly in volume within a ball of radius ``ball_r``.
          * If ``boundary="cube"``: sample coordinates uniformly in ``[low, high]^3``.
        - ``"gaussian"``:
          * If ``boundary="sphere"``: Gaussian around the center, clamped to lie within a ball of radius ``ball_r``.
          * If ``boundary="cube"``: Gaussian in a cube, then clipped to the interval ``[low, high]`` per axis.
        - ``"custom"``:
          * Requires a ``"norm"`` field.
          * For each center, uses its normal as a base direction and applies directional + radial jitter (using ``ball_r`` as scale) to create
            offsets in a “tube-like” pattern around the surface.
    * ``boundary``: defines the *shape* of the local region:
        - ``"sphere"``: offsets lie in or near a ball of radius ``ball_r``.
        - ``"cube"``: offsets lie in or near a cube with side approximately ``high - low`` (for uniform/gaussian).

    Colors for noise points are derived from the center colors:

    * For ``"uniform"`` and ``"gaussian"`` methods:
      - Noise points inherit exactly the color of their center.
    * For ``"custom"``:
      - Optionally add Gaussian jitter in color space (scale depends on whether ``range255`` is True or False),
      then clip to valid range.

    The number of **final** noise points is controlled by ``fixed``:

    * If ``fixed=True``:
      - Use all generated noise: ``noise_center_count * noise_max_k`` points.
    * If ``fixed=False``:
      - Randomly shuffle all noise points and keep a random subset of size
        between approximately one-eighth and the full generated count.

    Args:
        noise_size_ratio (float, optional):
            Fraction of non-noise points to use as noise centers. The number of centers is:

                noise_center_count = int(N * noise_size_ratio)

            Defaults to 1./64.
        noise_max_k (int, optional):
            Maximum number of noise points generated per center before optional subsampling.
            Defaults to 16.
        fixed (bool, optional):
            Whether to keep all generated noise points or randomly subsample them:

            * True  → keep all ``noise_center_count * noise_max_k`` noise points.
            * False → shuffle and randomly keep a subset of those points.

            Defaults to True.
        method ({"uniform", "gaussian", "custom"}, optional):
            Noise sampling strategy. See above for details. ``"custom"`` requires
            ``"norm"`` in ``data_dict``.
            Defaults to ``"uniform"``.
        boundary ({"sphere", "cube"}, optional):
            Shape of the local region in which noise is sampled. Interacts with ``method`` as described above.
            Defaults to ``"sphere"``.
        low (float, optional):
            Lower bound for cube-based offsets (used for ``boundary="cube"`` in ``"uniform"`` and ``"gaussian"``).
            Defaults to -0.1.
        high (float, optional):
            Upper bound for cube-based offsets.
            Defaults to 0.1.
        ball_r (float, optional):
            Radius of the spherical neighborhood for ``boundary="sphere"`` methods; also used as a scale for radial
            jitter in the ``"custom"`` method.
            Defaults to 0.1.
        range255 (bool, optional):
            Whether colors are stored in ``[0, 255]`` (integer-like). If True, color jitter in the ``"custom"`` method
            is done in that range. If False, colors are assumed in ``[0, 1]``.
            Defaults to False.
        apply_p (float, optional):
            Probability of applying the noise
            Defaults to 1.0.

    """
    def __init__(self, noise_size_ratio:float=1./64, noise_max_k:int=16, fixed:bool=True, method:str="uniform", boundary:str="sphere",
                 low:float=-0.1, high:float=0.1, ball_r:float=0.1, range255:bool=False, apply_p:float=1.0):
        self.noise_size_ratio = noise_size_ratio
        self.noise_max_k = noise_max_k
        self.fixed = fixed
        assert method in ["uniform", "gaussian", "custom"]
        self.method = method
        assert boundary in ["sphere", "cube"]
        self.boundary = boundary
        self.low, self.high = low, high
        self.ball_r = ball_r
        self.range255 = range255
        self.apply_p = apply_p

    def __call__(self, data_dict: dict) -> dict:
        """Apply local noise cluster augmentation to a point cloud dictionary.

        Args:
            data_dict (dict): Input dictionary containing at least ``"coord"`` (NumPy array of shape (N, 3)).
                May also contain ``"norm"``, ``"color"``, and ``"noise_index"``. For ``method="custom"``, ``"norm"`` must be present.

        Returns:
            dict: The same dictionary with additional noise points appended to the relevant per-point fields and an updated ``"noise_index"`` marking newly added noise points with label 1.
        """
        if random.random() > self.apply_p:
            return data_dict
        if "coord" not in data_dict.keys():
            return data_dict

        coord = data_dict["coord"]
        if "noise_index" in data_dict:
            coord = coord[np.logical_not(data_dict["noise_index"])]
        N = coord.shape[0]

        # how many centers
        noise_center_count = int(N * self.noise_size_ratio)
        if noise_center_count <= 0:
            return data_dict
        noise_center_count = min(noise_center_count, N)

        # choose centers
        center_idx = np.random.choice(N, noise_center_count, replace=False)
        centers = coord[center_idx]  # (C, 3)
        C = noise_center_count
        K = self.noise_max_k

        # ----------------- generate offsets (noise in local coords) -----------------
        noise_offsets = None  # (C, K, 3)
        noise_normals = None  # (C, K, 3) or None

        # helper: random unit directions
        def random_unit_vectors(shape):
            v = np.random.normal(size=shape)
            norm = np.linalg.norm(v, axis=-1, keepdims=True) + 1e-8
            return v / norm

        if self.method == "uniform":
            if self.boundary == "sphere":
                # uniform in ball of radius ball_r
                dirs = random_unit_vectors((C, K, 3))
                u = np.random.rand(C, K)
                radii = (u ** (1.0 / 3.0)) * self.ball_r  # uniform in volume
                noise_offsets = dirs * radii[..., None]
                noise_normals = dirs  # can use direction as "normal"
            elif self.boundary == "cube":
                noise_offsets = np.random.uniform(low=self.low, high=self.high, size=(C, K, 3))
                noise_normals = random_unit_vectors((C, K, 3))

        elif self.method == "gaussian":
            if self.boundary == "sphere":
                # sample Gaussian around center
                offsets = np.random.normal(loc=0.0, scale=self.ball_r / 3.0, size=(C, K, 3))
                # radii of those offsets
                radii = np.linalg.norm(offsets, axis=-1, keepdims=True) + 1e-8  # (C, K, 1)
                # clamp radius to ball_r by scaling each vector
                # scale = 1 if inside, ball_r / r if outside
                scale = np.minimum(1.0, self.ball_r / radii)  # (C, K, 1), broadcasts over last dim
                offsets = offsets * scale  # (C, K, 3)
                noise_offsets = offsets
                # recompute or reuse direction as normals
                new_radii = np.linalg.norm(offsets, axis=-1, keepdims=True) + 1e-8
                noise_normals = offsets / new_radii
            elif self.boundary == "cube":
                # Gaussian in a cube, then clipped to [low, high]
                scale = (self.high - self.low) / 6.0  # ~99.7% in [low, high]
                offsets = np.random.normal(loc=0.0, scale=scale, size=(C, K, 3))
                offsets = np.clip(offsets, self.low, self.high)
                noise_offsets = offsets
                noise_normals = random_unit_vectors((C, K, 3))

        elif self.method == "custom":
            assert "norm" in data_dict, "custom method requires 'norm' in data_dict."

            noise_size = len(center_idx)  # N' centers
            K = self.noise_max_k

            # ---- center normals ----
            normal_centers = np.asarray(data_dict["norm"], dtype=np.float32)[center_idx]  # (N', 3)
            # make sure they are unit vectors
            normal_centers /= (np.linalg.norm(normal_centers, axis=-1, keepdims=True) + 1e-8)

            # [N', K, 3] repeat normals per patch
            repeat_normals = np.repeat(normal_centers[:, np.newaxis, :], K, axis=1)  # (N', K, 3)

            # =====================================================
            # 1) JITTER FOR NORMAL DIRECTION (directional jitter)
            # =====================================================
            # small Gaussian noise added to the normal, then renormalized
            dir_sigma = 2  # strength of direction jitter (tune if needed)
            dir_jitter = np.random.normal(
                loc=0.0,
                scale=dir_sigma,
                size=(noise_size, K, 3)
            )

            perturbed_dir = repeat_normals + dir_jitter  # (N', K, 3)
            dir_norm = np.linalg.norm(perturbed_dir, axis=-1, keepdims=True) + 1e-8
            dir_unit = perturbed_dir / dir_norm  # (N', K, 3), unit direction per noise point

            # =====================================================
            # 2) JITTER FOR DISTANCE TO CENTER (radial jitter)
            # =====================================================
            # base radius in [0, ball_r], biased toward outer region (your original idea)
            u = np.random.rand(noise_size, K)  # (N', K)
            base_radius = (u ** (1.0 / 3.0)) * self.ball_r  # (N', K), >= 0

            # additive jitter around base_radius
            dist_sigma = 1.  # in *absolute* units of ball_r (tune this)
            jitter = np.random.normal(
                loc=0.0,
                scale=dist_sigma * self.ball_r,
                size=(noise_size, K)
            )  # (N', K)

            r = base_radius + jitter  # (N', K)
            r = np.clip(r, self.ball_r / 4.0, self.ball_r)  # keep in [0, ball_r]
            r = r[:, :, None]  # (N', K, 1)

            # =====================================================
            # FINAL OFFSETS & NORMALS (LOCAL COORDS)
            # =====================================================
            # offset from center = jittered direction * jittered distance
            noise_offsets = dir_unit * r  # (N', K, 3)
            noise_normals = dir_unit  # (N', K, 3)
        else:
            return data_dict

        # ----------------- COLOR: center-based -----------------
        noise_colors = None
        if "color" in data_dict:
            orig_color = np.asarray(data_dict["color"])
            center_colors = orig_color[center_idx]  # (C, Cc)
            base_colors = np.repeat(center_colors[:, None, :], K, axis=1)  # (C, K, Cc)

            if self.method in ("uniform", "gaussian"):
                # exactly same color as center
                noise_colors = base_colors.astype(orig_color.dtype)

            elif self.method == "custom":
                if self.range255:
                    color_jitter = np.random.normal(loc=0.0, scale=10.0, size=base_colors.shape)
                    noise_colors = base_colors + color_jitter
                    noise_colors = np.clip(noise_colors, 0, 255).round().astype(orig_color.dtype)
                else:
                    color_jitter = np.random.normal(loc=0.0, scale=0.05, size=base_colors.shape)
                    noise_colors = base_colors + color_jitter
                    noise_colors = np.clip(noise_colors, 0.0, 1.0).astype(orig_color.dtype)

        # ----------------- map to world coords -----------------
        noise_points = noise_offsets + centers[:, None, :]  # (C, K, 3)

        # flatten
        noise_points = noise_points.reshape(-1, 3)
        if noise_normals is not None:
            noise_normals = noise_normals.reshape(-1, 3)
        if noise_colors is not None:
            noise_colors = noise_colors.reshape(-1, noise_colors.shape[-1])

        # ----------------- optional subsampling -----------------
        if not self.fixed:
            idx = np.arange(len(noise_points))
            np.random.shuffle(idx)
            total = np.random.randint(max(1, len(noise_points) // 8), len(noise_points) + 1)
            idx = idx[:total]

            noise_points = noise_points[idx]
            if noise_normals is not None:
                noise_normals = noise_normals[idx]
            if noise_colors is not None:
                noise_colors = noise_colors[idx]

        # ----------------- append to data_dict -----------------
        data_dict["coord"] = np.concatenate([data_dict["coord"], noise_points], axis=0)

        if "norm" in data_dict and noise_normals is not None:
            data_dict["norm"] = np.concatenate([data_dict["norm"], noise_normals], axis=0)

        if "color" in data_dict and noise_colors is not None:
            data_dict["color"] = np.concatenate([data_dict["color"], noise_colors], axis=0)

        # ----------------- noise_index -----------------
        num_noise = noise_points.shape[0]
        if "noise_index" not in data_dict:
            ni = np.zeros(len(data_dict["coord"]), dtype=int)
            ni[-num_noise:] = 1
            data_dict["noise_index"] = ni
        else:
            old_len = len(data_dict["noise_index"])
            new_len = len(data_dict["coord"])
            ni = np.ones(new_len, dtype=int) * 1
            ni[:old_len] = data_dict["noise_index"]
            data_dict["noise_index"] = ni

        return data_dict

`call(data_dict)`

Apply local noise cluster augmentation to a point cloud dictionary.

Parameters:

Name	Type	Description	Default
`data_dict`	`dict`	Input dictionary containing at least `"coord"` (NumPy array of shape (N, 3)). May also contain `"norm"`, `"color"`, and `"noise_index"`. For `method="custom"`, `"norm"` must be present.	required

Returns:

Name	Type	Description
`dict`	`dict`	The same dictionary with additional noise points appended to the relevant per-point fields and an updated `"noise_index"` marking newly added noise points with label 1.

Source code in src\augmentation_class.py

def __call__(self, data_dict: dict) -> dict:
    """Apply local noise cluster augmentation to a point cloud dictionary.

    Args:
        data_dict (dict): Input dictionary containing at least ``"coord"`` (NumPy array of shape (N, 3)).
            May also contain ``"norm"``, ``"color"``, and ``"noise_index"``. For ``method="custom"``, ``"norm"`` must be present.

    Returns:
        dict: The same dictionary with additional noise points appended to the relevant per-point fields and an updated ``"noise_index"`` marking newly added noise points with label 1.
    """
    if random.random() > self.apply_p:
        return data_dict
    if "coord" not in data_dict.keys():
        return data_dict

    coord = data_dict["coord"]
    if "noise_index" in data_dict:
        coord = coord[np.logical_not(data_dict["noise_index"])]
    N = coord.shape[0]

    # how many centers
    noise_center_count = int(N * self.noise_size_ratio)
    if noise_center_count <= 0:
        return data_dict
    noise_center_count = min(noise_center_count, N)

    # choose centers
    center_idx = np.random.choice(N, noise_center_count, replace=False)
    centers = coord[center_idx]  # (C, 3)
    C = noise_center_count
    K = self.noise_max_k

    # ----------------- generate offsets (noise in local coords) -----------------
    noise_offsets = None  # (C, K, 3)
    noise_normals = None  # (C, K, 3) or None

    # helper: random unit directions
    def random_unit_vectors(shape):
        v = np.random.normal(size=shape)
        norm = np.linalg.norm(v, axis=-1, keepdims=True) + 1e-8
        return v / norm

    if self.method == "uniform":
        if self.boundary == "sphere":
            # uniform in ball of radius ball_r
            dirs = random_unit_vectors((C, K, 3))
            u = np.random.rand(C, K)
            radii = (u ** (1.0 / 3.0)) * self.ball_r  # uniform in volume
            noise_offsets = dirs * radii[..., None]
            noise_normals = dirs  # can use direction as "normal"
        elif self.boundary == "cube":
            noise_offsets = np.random.uniform(low=self.low, high=self.high, size=(C, K, 3))
            noise_normals = random_unit_vectors((C, K, 3))

    elif self.method == "gaussian":
        if self.boundary == "sphere":
            # sample Gaussian around center
            offsets = np.random.normal(loc=0.0, scale=self.ball_r / 3.0, size=(C, K, 3))
            # radii of those offsets
            radii = np.linalg.norm(offsets, axis=-1, keepdims=True) + 1e-8  # (C, K, 1)
            # clamp radius to ball_r by scaling each vector
            # scale = 1 if inside, ball_r / r if outside
            scale = np.minimum(1.0, self.ball_r / radii)  # (C, K, 1), broadcasts over last dim
            offsets = offsets * scale  # (C, K, 3)
            noise_offsets = offsets
            # recompute or reuse direction as normals
            new_radii = np.linalg.norm(offsets, axis=-1, keepdims=True) + 1e-8
            noise_normals = offsets / new_radii
        elif self.boundary == "cube":
            # Gaussian in a cube, then clipped to [low, high]
            scale = (self.high - self.low) / 6.0  # ~99.7% in [low, high]
            offsets = np.random.normal(loc=0.0, scale=scale, size=(C, K, 3))
            offsets = np.clip(offsets, self.low, self.high)
            noise_offsets = offsets
            noise_normals = random_unit_vectors((C, K, 3))

    elif self.method == "custom":
        assert "norm" in data_dict, "custom method requires 'norm' in data_dict."

        noise_size = len(center_idx)  # N' centers
        K = self.noise_max_k

        # ---- center normals ----
        normal_centers = np.asarray(data_dict["norm"], dtype=np.float32)[center_idx]  # (N', 3)
        # make sure they are unit vectors
        normal_centers /= (np.linalg.norm(normal_centers, axis=-1, keepdims=True) + 1e-8)

        # [N', K, 3] repeat normals per patch
        repeat_normals = np.repeat(normal_centers[:, np.newaxis, :], K, axis=1)  # (N', K, 3)

        # =====================================================
        # 1) JITTER FOR NORMAL DIRECTION (directional jitter)
        # =====================================================
        # small Gaussian noise added to the normal, then renormalized
        dir_sigma = 2  # strength of direction jitter (tune if needed)
        dir_jitter = np.random.normal(
            loc=0.0,
            scale=dir_sigma,
            size=(noise_size, K, 3)
        )

        perturbed_dir = repeat_normals + dir_jitter  # (N', K, 3)
        dir_norm = np.linalg.norm(perturbed_dir, axis=-1, keepdims=True) + 1e-8
        dir_unit = perturbed_dir / dir_norm  # (N', K, 3), unit direction per noise point

        # =====================================================
        # 2) JITTER FOR DISTANCE TO CENTER (radial jitter)
        # =====================================================
        # base radius in [0, ball_r], biased toward outer region (your original idea)
        u = np.random.rand(noise_size, K)  # (N', K)
        base_radius = (u ** (1.0 / 3.0)) * self.ball_r  # (N', K), >= 0

        # additive jitter around base_radius
        dist_sigma = 1.  # in *absolute* units of ball_r (tune this)
        jitter = np.random.normal(
            loc=0.0,
            scale=dist_sigma * self.ball_r,
            size=(noise_size, K)
        )  # (N', K)

        r = base_radius + jitter  # (N', K)
        r = np.clip(r, self.ball_r / 4.0, self.ball_r)  # keep in [0, ball_r]
        r = r[:, :, None]  # (N', K, 1)

        # =====================================================
        # FINAL OFFSETS & NORMALS (LOCAL COORDS)
        # =====================================================
        # offset from center = jittered direction * jittered distance
        noise_offsets = dir_unit * r  # (N', K, 3)
        noise_normals = dir_unit  # (N', K, 3)
    else:
        return data_dict

    # ----------------- COLOR: center-based -----------------
    noise_colors = None
    if "color" in data_dict:
        orig_color = np.asarray(data_dict["color"])
        center_colors = orig_color[center_idx]  # (C, Cc)
        base_colors = np.repeat(center_colors[:, None, :], K, axis=1)  # (C, K, Cc)

        if self.method in ("uniform", "gaussian"):
            # exactly same color as center
            noise_colors = base_colors.astype(orig_color.dtype)

        elif self.method == "custom":
            if self.range255:
                color_jitter = np.random.normal(loc=0.0, scale=10.0, size=base_colors.shape)
                noise_colors = base_colors + color_jitter
                noise_colors = np.clip(noise_colors, 0, 255).round().astype(orig_color.dtype)
            else:
                color_jitter = np.random.normal(loc=0.0, scale=0.05, size=base_colors.shape)
                noise_colors = base_colors + color_jitter
                noise_colors = np.clip(noise_colors, 0.0, 1.0).astype(orig_color.dtype)

    # ----------------- map to world coords -----------------
    noise_points = noise_offsets + centers[:, None, :]  # (C, K, 3)

    # flatten
    noise_points = noise_points.reshape(-1, 3)
    if noise_normals is not None:
        noise_normals = noise_normals.reshape(-1, 3)
    if noise_colors is not None:
        noise_colors = noise_colors.reshape(-1, noise_colors.shape[-1])

    # ----------------- optional subsampling -----------------
    if not self.fixed:
        idx = np.arange(len(noise_points))
        np.random.shuffle(idx)
        total = np.random.randint(max(1, len(noise_points) // 8), len(noise_points) + 1)
        idx = idx[:total]

        noise_points = noise_points[idx]
        if noise_normals is not None:
            noise_normals = noise_normals[idx]
        if noise_colors is not None:
            noise_colors = noise_colors[idx]

    # ----------------- append to data_dict -----------------
    data_dict["coord"] = np.concatenate([data_dict["coord"], noise_points], axis=0)

    if "norm" in data_dict and noise_normals is not None:
        data_dict["norm"] = np.concatenate([data_dict["norm"], noise_normals], axis=0)

    if "color" in data_dict and noise_colors is not None:
        data_dict["color"] = np.concatenate([data_dict["color"], noise_colors], axis=0)

    # ----------------- noise_index -----------------
    num_noise = noise_points.shape[0]
    if "noise_index" not in data_dict:
        ni = np.zeros(len(data_dict["coord"]), dtype=int)
        ni[-num_noise:] = 1
        data_dict["noise_index"] = ni
    else:
        old_len = len(data_dict["noise_index"])
        new_len = len(data_dict["coord"])
        ni = np.ones(new_len, dtype=int) * 1
        ni[:old_len] = data_dict["noise_index"]
        data_dict["noise_index"] = ni

    return data_dict

Adding Noise

Before After

Noise

AddOutlier

__call__(data_dict)

AddBackgroundNoise

__call__(data_dict)

AddNoise

__call__(data_dict)

`call(data_dict)`

`call(data_dict)`

`call(data_dict)`
